Dimensions & Specifications
In this post, we provide detailed dimensions and specifications for the StudioGrip part, focusing on both X-Axis and Y-Axis views.
Dimensions

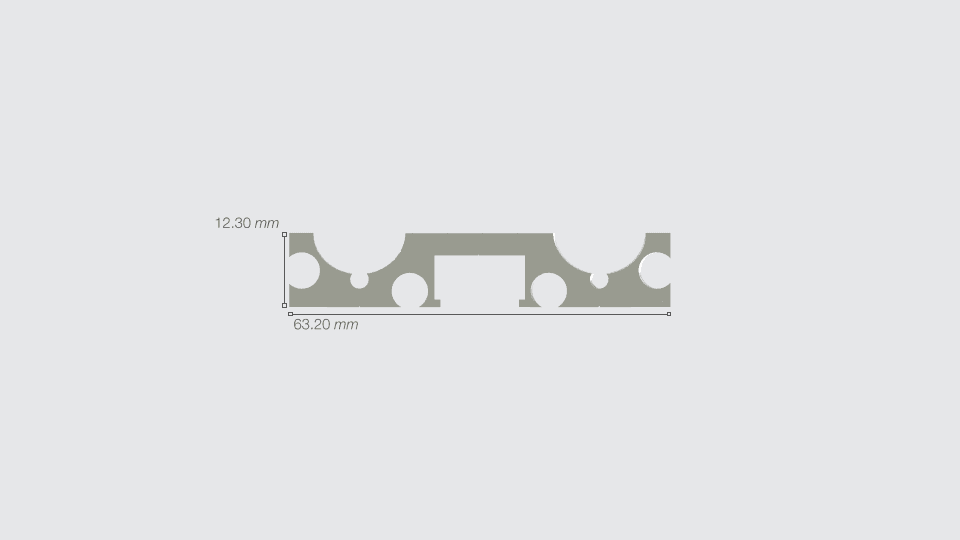

Side View
Width: 63.20 mm | 2.488 in.
Width Variability: += 0.86 mm | 0.034 in.
Height: 12.30 mm | .484 in.
Height Variability: += 0.20 mm | 0.008 in.

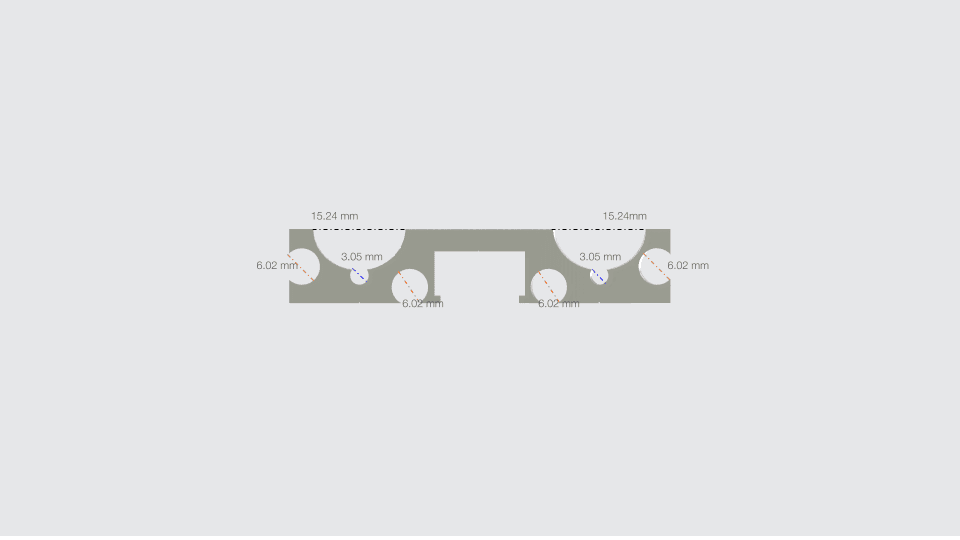

Diameter’s
Black Diameter
Diameter: 15.24 mm | 0.600 in.
Diameter Variability: ± 0.41 mm | 0.016 in.
Blue Diameter
Diameter: 3.05 mm | 0.120 in.
Diameter Variability: ± 0.15 mm | 0.006 in.
Orange Diameter
Diameter: 6.02 mm | 0.237 in.
Diameter Variability: ± 0.18 mm | 0.007 in.

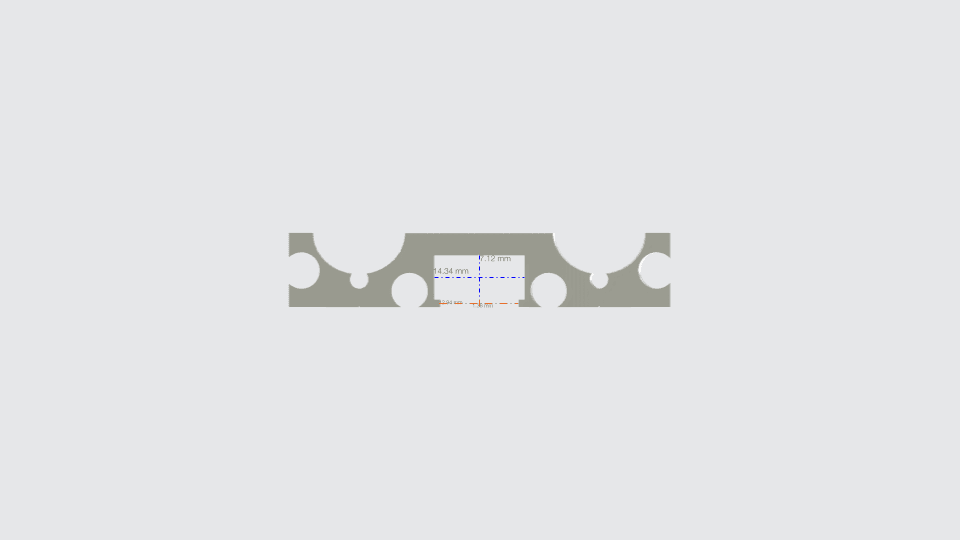

Central Square
Orange
Width: 12.94 mm | 0.510 in.
Width Variability: ± 0.41 mm | 0.016 in.
Height: 1.36 mm | 0.054 in.
Height Variability: ± 0.15 mm | 0.006 in.
Blue
Width: 14.34 mm | 0.564 in.
Width Variability: ± 0.41 mm | 0.016 in.
Height: 7.12 mm | 0.280 in.
Height Variability: ± 0.20 mm | 0.008 in.

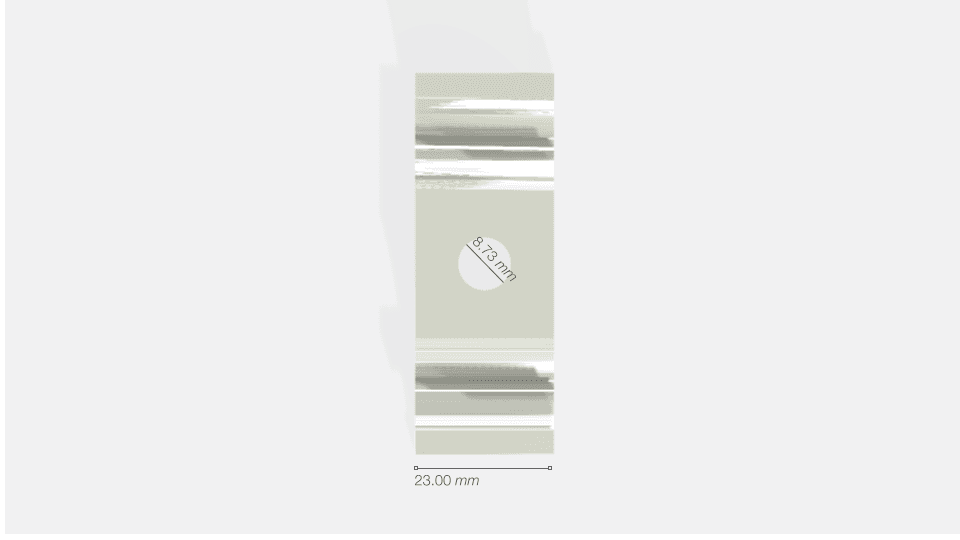

Top View
Central Hole
Diameter: 8.73 mm | .344 in.
Diameter Variability: +- 0.25 | +- 0.10 in.
Depth
Depth: 23.00 mm | 0.906 in.
Depth Variability: +- 0.25 mm | +- 0.010 in.
Specifications
~ We still need load testing on this ~
